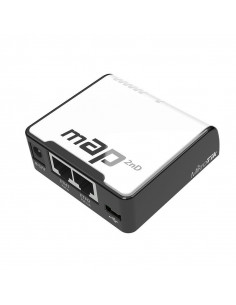

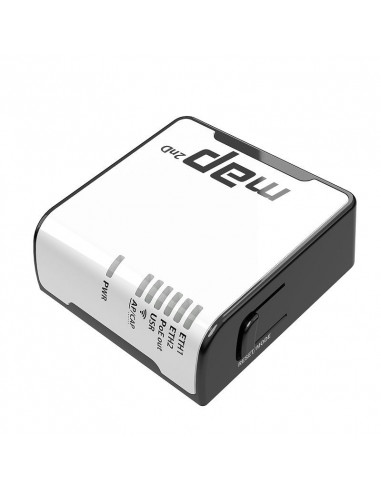

Mikrotik RBmAP2nD mAP
Micro AP MIMO 2,4 GHz, processeur 650 MHz, 64 Mo de RAM, 2x Ethernet, sortie PoE
Le mAP (micro Access Point) est un point d’accès sans fil MIMO à 2,4 GHz doté de toutes les fonctionnalités de RouterOS. Il est très portable car il est alimenté par une grande variété de sources - USB, PoE passif et prise d’alimentation. Il fonctionne également comme un injecteur PoE - le deuxième port Ethernet fournit une alimentation pouvant atteindre 500 mA à un autre périphérique. Vous pouvez par exemple y connecter un périphérique SXT CPE.
Specifications
Details | |
---|---|
Product code | RBmAP2nD |
Architecture | MIPSBE |
CPU | QCA9531 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Dimensions | 68x68x19mm |
License level | 4 |
Operating System | RouterOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
Tested ambient temperature | -20°C to 70°C |
Powering
Details | |
---|---|
MicroUSB input Voltage | 5-5 V |
PoE in | 802.3af/at |
PoE in input Voltage | 12-57 V |
PoE out | Passive PoE |
PoE-out ports | Ether2 |
Number of DC inputs | 3 (PoE-IN, MicroUSB, DC jack) |
DC jack input Voltage | 8-57 V |
Max out per port output (input < 30 V) | 0.5 A |
Max total out (A) | 0.5 A |
Max power consumption | 5 W |
Wireless
Details | |
---|---|
Antenna gain dBi for 2.4 GHz | 1.2 |
Wireless 2.4 GHz standards | 802.11b/g/n |
Wireless 2.4 GHz Max data rate | 300 Mbit/s |
Wireless 2.4 GHz number of chains | 2 |
Wireless 2.4 GHz chip model | QCA9531 |
Wi-Fi generation | 4 |
Ethernet
Details | |
---|---|
10/100 Ethernet ports | 2 |
Peripherals
Details | |
---|---|
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | microUSB type AB |
Max USB current (A) | 1 |
Other
Details | |
---|---|
PCB temperature monitor | Yes |
Voltage Monitor | Yes |
Wireless specifications
2.4 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
1MBit/s | 22 | -96 |
11MBit/s | 22 | -89 |
6MBit/s | 20 | -93 |
54MBit/s | 18 | -74 |
MCS0 | 20 | -93 |
MCS7 | 16 | -71 |
